Getting commercial elevator shaft dimensions wrong at the design stage is one of the most expensive mistakes a developer can make – undersized shafts mean costly rework, while oversized ones waste valuable floor area across every level of the building. This guide breaks down exactly what commercial elevator shaft dimensions you need to plan for in the UAE, based on capacity, elevator type, and local compliance requirements.

The size of an elevator shaft is not a fixed number determined by standards, but is actually computed based on 3 factors: 1) Passenger or load capacity 2), number of shafts and doors involved, 3) type of technology, that is, whether it is traction or machine room-less (MRL). For instance, a small elevator and a heavy freight elevator may have a very different footprint of the shaft by almost a meter in each dimension.

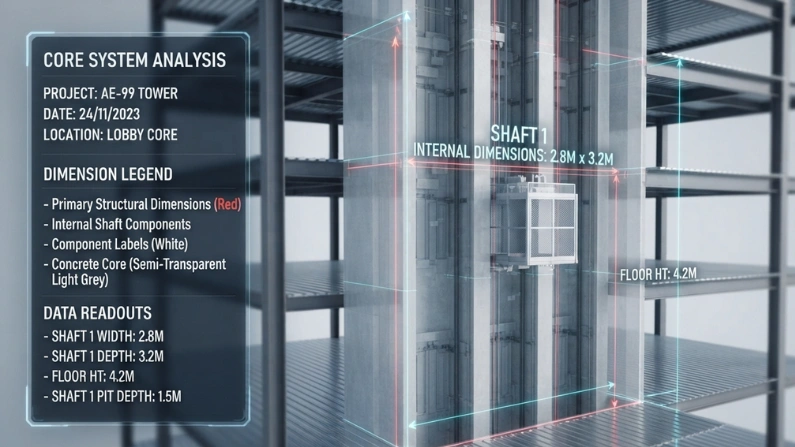

Elevator shaft size scales directly with how many people or how much load the system is rated to carry. As a general planning reference for UAE commercial buildings:

🚩 Small Commercial (6–8 persons / 450–630 kg): shaft width approximately 1,700–1,800 mm; shaft depth approximately 1,600–1,700 mm

🚩 Medium Commercial (10–13 persons / 800–1,000 kg): shaft width approximately 2,000–2,200 mm; shaft depth approximately 1,800–2,100 mm

🚩 Large / Accessible (15+ persons / 1,150+ kg): shaft width 2,400 mm or more; shaft depth 2,300 mm or more

These standard elevator shaft dimensions serve as a starting reference point, not a fixed spec – the exact figure still depends on your chosen elevator type, door configuration, and cabin finish thickness, which is why early coordination with your elevator provider matters more than working from a generic chart alone.

Two dimensions get overlooked far more often than shaft width and depth, yet both are just as critical to get right during shell-and-core construction.

🚩 Elevator pit size: a minimum clear depth of 1,200–1,500 mm below the lowest landing is typically required for standard commercial traction and MRL units. This space houses the buffers that absorb impact energy during an emergency stop – insufficient pit depth compromises this safety margin and complicates maintenance access.

🚩 Overhead clearance: generally 4,000–4,500 mm is required from the finished floor level of the top landing to the underside of the shaft roof slab, to accommodate the motor, control system, cables, and counterweight travel above the highest stop.

Both figures need to be locked in before the shaft is poured – retrofitting additional pit depth or overhead space into an already-constructed shaft is far more disruptive and costly than allowing for it upfront.

Machine room-less (MRL) elevators have become the default choice for most UAE commercial buildings because they eliminate the need for a separate machine room above the shaft, allowing the drive to sit within the shaft head or pit itself. This typically means:

Traditional traction systems remain common for very high-rise or high-speed applications where MRL configurations reach their practical limits.

Commercial elevator shaft dimensions in the UAE don’t exist in isolation from local regulation – several compliance layers directly shape the final shaft design:

• Civil Defence and fire safety codes – shafts in high-rise buildings often require pressurized shaft design or dedicated smoke-ventilation provisions
• Accessibility requirements – commercial buildings must provide barrier-free access, with clear door openings of at least 900 mm to accommodate wheelchair users
• Healthcare and specialized facilities – service and goods lifts in hospitals or medical facilities typically require larger footprints, often starting around 1,600 mm wide by 2,200 mm deep with wider clear door openings to accommodate stretchers and medical equipment

Designing to these UAE-specific requirements from the outset avoids the far more expensive scenario of a shaft that passes general construction review but fails elevator-specific Civil Defence approval later in the project.

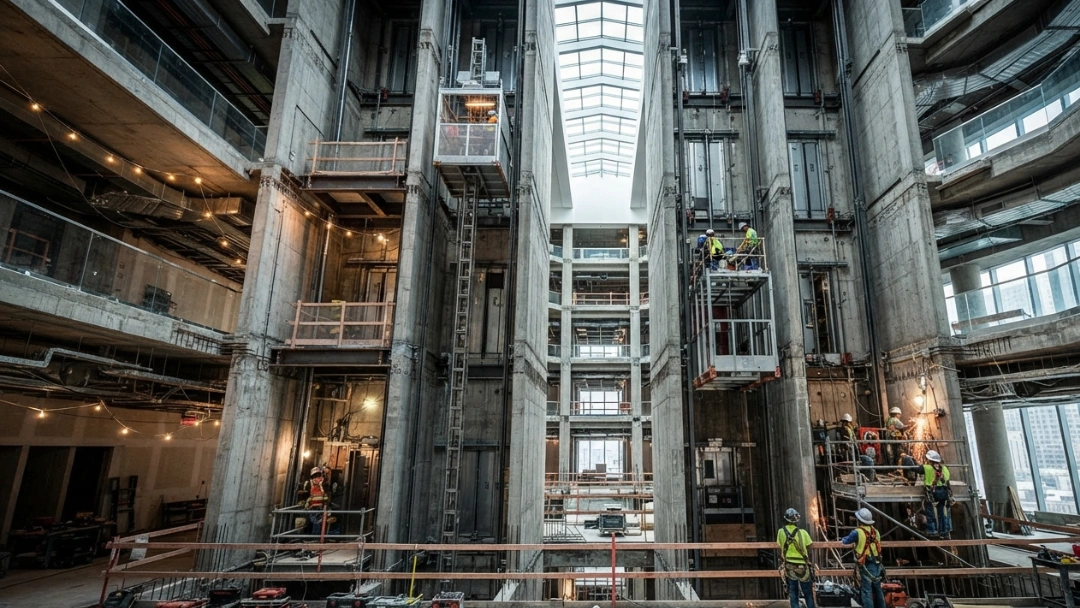

New-construction projects have the advantage of designing the shaft around the elevator from day one. Retrofit projects face a different challenge entirely – working backward from whatever space already exists within the building’s structure. Common retrofit approaches include:

• Repurposing an existing stairwell or light well where a dedicated shaft was never planned
• Selecting a smaller-footprint MRL system specifically because it demands less overhead and machine space than a traditional traction unit
• Structural modifications to floor slabs and openings, which require careful sequencing to minimize disruption to an occupied building

Retrofit shaft planning almost always benefits from an on-site assessment before any dimension is finalized, since existing structural conditions rarely match the assumptions in a generic planning chart.

A shaft built to the wrong commercial elevator shaft dimensions doesn’t just cause a delay – it can force a change in elevator type, capacity, or even floor layout partway through construction. Altivex collaborates with architects and consultants during the design process in order to verify the dimensions of the shaft, the depth of the pit, and clearance of the top and eliminate possible discrepancies even after construction starts.
